單/雙面銅鋁復合板帶
Single/double sided copper aluminum composite strip特性優點 Character
單面或者雙面銅復鋁，幾乎沒有接觸電阻，與純銅相比有超過70%的重量?jī)?yōu)勢，擁有非常好的導電率和導熱率以及散熱性，具體可根據需求定制。
Single-sided or double-sided copper composite aluminum alloy, almost no contact resistance, compared with pure copper has more than 70% weight advantage, has very good conductivity and thermal conductivity and heat dissipation, specific can be customized according to demand。
通?？晒┮?guī)格范圍
Specifications available
| 標準尺寸 | 鋁-銅-鋁/鋁-銅 | 銅-鋁 | 銅-鋁-銅 |
| 帶材寬度 | < 1100mm | < 1100mm | < 1100mm |
| 帶材厚度 | 0,03 - 10,0 mm | 0,03 - 10,0 mm | 0,03 - 10,0 mm |
| 覆層厚度 | 5 - 20 % | 10 - 40 % | 10 - 40 % |
| 芯層/基層材料 | Cu | Al | Al |
| 覆層材料 | AL | Cu | Cu |
| 交付形式 | 卷材 | 卷材 | 卷材 |
| 表面處理狀態 | 亮面 | 亮面 | 亮面 |
The thickness of the copper or aluminum alloy is not limited from the table ; but custom’ requirement . One side of the copper or aluminum alloy can be different from the other.

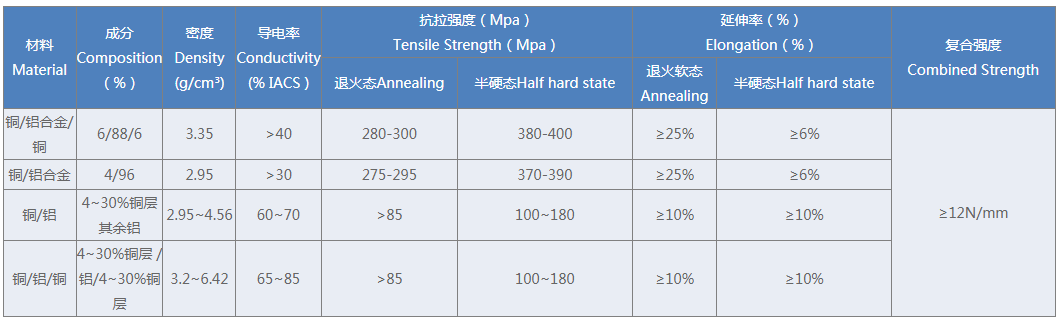

產品性能
Product performance
|
材料 Material |
成分Composition（%） |
密度 Density (g/cm³) |
導電率 Conductivity (% IACS ) |
抗拉強度（Mpa） Tensile Strength（Mpa） |
延伸率（%） Elongation（%） |
復合強度 Combined Strength |
|||
|
退火軟態 Annealing |
半硬態Half hard state | ||||||||
| 退火態Annealing | 半硬態Half hard state | ||||||||
| 銅/鋁合金/銅 | 6/88/6 | 3.35 | >40 | 280-300 | 380-400 | ≥25% | ≥6% | ≥12N/mm | |
| 銅/鋁合金 | 4/96 | 2.95 | >30 | 275-295 | 370-390 | ≥25% | ≥6% | ||
| 銅/鋁 | 4~30%銅層 其余鋁 | 2.95~4.56 | 60~70 | >85 | 100~180 | ≥10% | ≥10% | ||
| 銅/鋁/銅 | 4~30%銅層 /鋁/4~30%銅層 | 3.2~6.42 | 65~85 | >85 | 100~180 | ≥10% | ≥10% | ||
